Industrial Curtain Walls

Industrial Curtain Walls

Perfect for places where short opening and closing times are required.

OCM high speed roll up doors are high speed doors which open and close using a vertical roll-up system, especially suited for areas with a frequent coming and going of vehicles, goods and individuals.
The strenghts of this product, which deserve to be highlighted, are the high-speed operation, the flexible, sturdy and durable curtain, the low maintenance and the reduction of heating consumption.
These high speed doors are perfectly suited for small and medium-sized areas, because an important aspect is that they take up very little space.
In general, our rolling doors are used in industrial and commercial fields but also in other working environments, such as the pharmaceutical one, where the structure is made of stainless steel and the curtain, suitable for food contact, is totally washable in order to guarantee a perfect hygiene; moreover in hospital and food sectors, where it’s significant the ability to reduce loss of heating and cooling among the different areas.

KEY BENEFITS
Quick movement
Security functions
Durability, efficiency, safety
Thermal insulation
Minimal maintenance
Cost savings
Wide range of finishes, colors, and window options available

APPLICATIONS
OCM roll up doors are designed for intensive daily use in areas with a frequent coming and going of individuals and vehicles between the different working environments, without limiting the heavy flow of traffic.
Rapid roll doors reduce heating consumption, require low maintenance and ensure high-speed operation, durability and insulation.
Industry
Large retailer
Logistic
Warehouse and self-storage facility
Hospital
Supermarket
Food store

TECHNICAL SPECIFICATIONS
UPPER FRAMEWORK: made of steel for a high mechanical strength, with a rolling shaft already installed inside the framework and mounted on ball bearing to decrease friction while rotating.
SIDE RUNNERS: with brushes made of soft nylon installed laterally in order to reduce friction with the flexible curtain.
MOTOR: thanks to our technology and the industrial self-braking three-phases electric geared motor with easy settable rotating limit switch, our doors ensure a fast vertical opening and the consequential closure. The gear motor moves and controls the action of the flexible curtain.
CURTAIN: the flexible curtain is made of polyester fabric covered by PVC with high traction strength either in warp and weft. It is equipped with horizontal reinforcement bars which provide a high level of resistance to mechanical stresses.
LIMIT SWITCH: easy to setup and available with 2 or cams.
PHOTOCELLS: with infrared beam technology, easy to install and to replace.
WIRELESS SYSTEM: supplied with batteries.

SAFETY
For what concerns its design, maximum attention has been given to safety regulations, in order to avoid the door closing at the same time that people and/or goods are transiting. In fact, on the bottom of the curtain, the last horizontal aluminum bar is coated with an electro-conductive rubber edge and an infrared photocells device allows the detection of people and/or goods passing through, regulating the stop of the closing movement and ordering the immediate re-opening of doors.
Furthermore, in case of absence of electricity, the manual override can be activated.

EUROPEAN STANDARD COMPLIANCE
All our doors comply with rule EN 13241-1.

ACCESSORIES
Remote controller for radio opening
Microwave motion detector
Floor detector of metal objects
Metal arm with pulling rope
Bottom safety edge sensitive to press ion
Red/green light connected to the status of the door for managing doorways

Our rapid roll doors are fully customizable in materials, colors and accessories, tailor-made in order to meet any Customer’s needs.
All the doors are also customizable with windows and trasparenti portholes in PVC for greater brightness in the rooms.
We attach great importance to the fundamental characteristics of our company: the constant technological development and the high-quality materials used for all doors.

COLOURS

900 GR/SQM

INSULATED

commands

Control Panel T500-7
Anemometro
Push Button
Radio Command
Microwave radar
Metal Detector
Card
Catalogo Generale
Brochure Self-Repairing Doors
Catalogo High Speed Doors
RT High Speed Doors

Product applications

Discover all the possible applications and variations of the product.

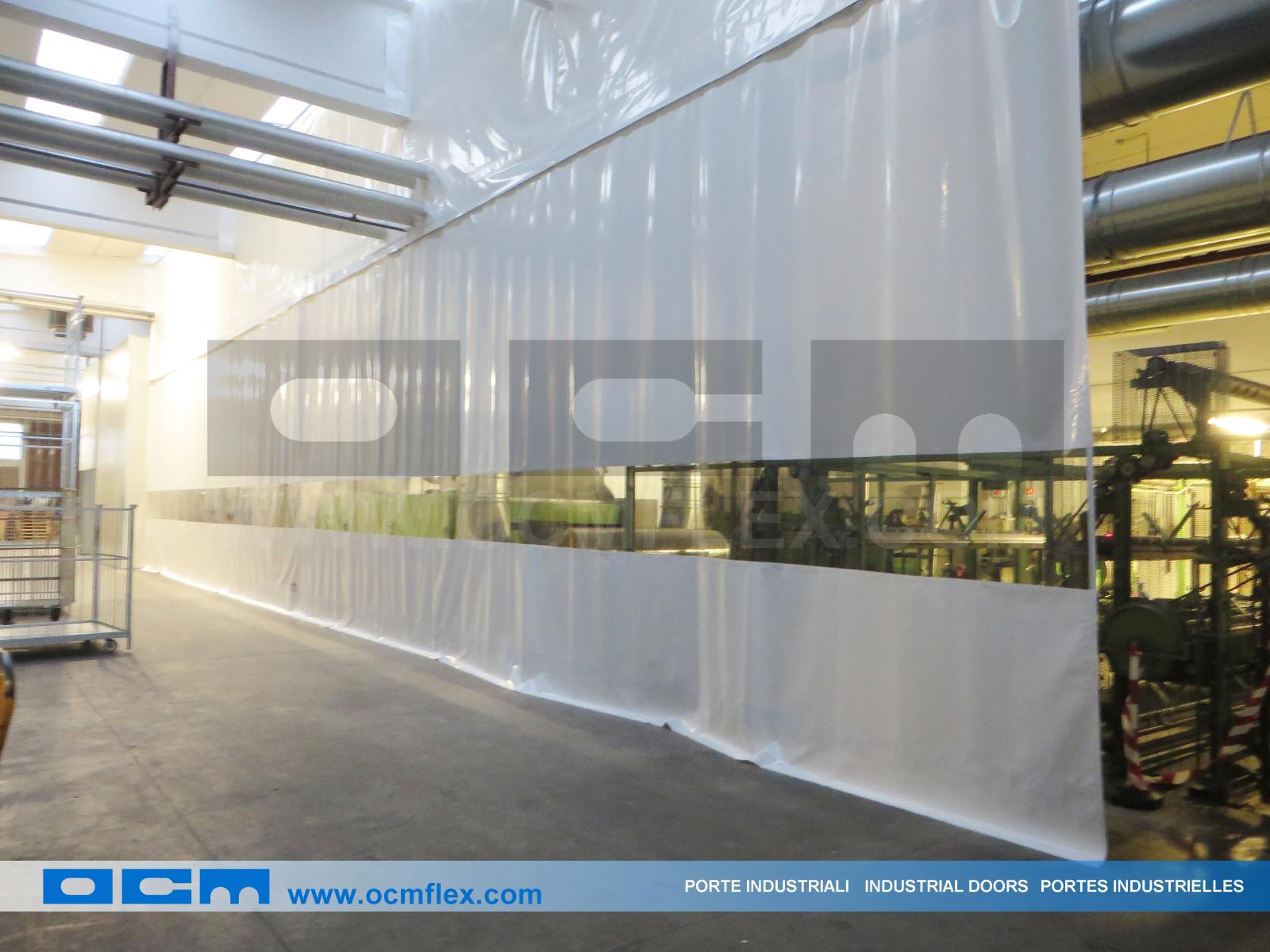

Industrial Curtain Walls Gallery
